Minrui Concrete Batching Plant Profile

Concrete batching plant are mainly used in concrete construction projects, and their main purpose is to mix concrete, also known as concrete batching plant.

Description of Concrete Batching Plant

HZS series commercial concrete batching plant adopt the internationally popular modular quick assembly structure, high-performance imported or domestic mixing main machine, dual-machine dual-control computer control method, anti-noise, anti-dust pollution, environmentally friendly design, and are a new generation of cement concrete mixing equipment.

They are suitable for large-scale infrastructure construction projects such as commercial premixed concrete in urban and rural areas, roads and bridges, water conservancy, airports, ports, and places with large concrete demand.

Concrete batching plant are mainly used in concrete projects, and their main purpose is to mix concrete, also known as concrete batching plant.

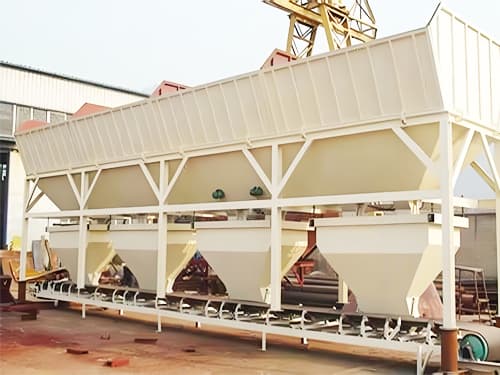

Concrete batching plant are composed of feeding, storage, batching, mixing, discharging, control and other systems and structural components, and are complete sets of equipment for producing concrete.

Concrete Mixer Plant Capacity

Concrete batching plant can be divided into single-machine stations and double-machine stations. As the name implies, a single-machine station means that each concrete batching plant has one mixing host, a double-machine station has two mixing hosts, and a multi-station group means more than two mixing hosts, each mixing host corresponds to a discharge port, so the multi-station group and double-machine concrete batching plant have more than twice the production capacity of a single-machine concrete batching plant. For example, 2HZS120 refers to a double-machine concrete batching plant with a mixing capacity of 2*120=240 cubic meters/hour.

The size of the concrete batching plant is named according to its theoretical production per hour. The commonly used specifications in my country are: HZS25, HZS35, HZS45, HZS50, HZS60, HZS75, HZS90, HZS120, HZS150, HZS180, HZS240, etc. For example: HZS25 refers to a concrete batching plant with a production capacity of 25 cubic meters per hour, and the host is a twin-shaft forced mixer.

Concrete Mixing Plant Composition

The concrete batching plant adopts an advanced automatic control system, which integrates simulation technology applied to the concrete field, intelligent control, automatic control, and manual control. It can observe and count the production process and production status of the concrete batching plant and building in real time, and can connect to detect the water content of sand and stone, the control of concrete slump, and can make automatic online temperature compensation, so as to achieve the purpose of adding sand and reducing water.

It can provide a remote communication interface centralized one machine dual control, so as to transmit the data of each workstation to the centralized control management office to achieve instant reading of production process data, which is convenient for management.

Concrete Plant Production

Commercial concrete batching plant is to send the mixed concrete to the construction unit via a special concrete mixer truck. Most of the models are C20 (concrete for cushion layer), C30 (concrete for floor or wall), C35 (concrete for ring beam), C50 (high-grade concrete for overpass or viaduct).

The concrete batching plant has a high intelligent automation function and is an intermittent forced concrete batching plant. It is favored by users for its compact structure, flexible layout, low investment, convenient disassembly and transportation.

It can realize a variety of combination methods and feeding methods according to user needs, can produce dry hard, semi-dry hard, plastic and various proportions of concrete, and realize the stone wrapping mixing process, which greatly improves the quality of concrete. It is an ideal equipment for small and medium-sized construction, highway bridge construction, commercial concrete, pipe piles, and cement prefabrication plants.
