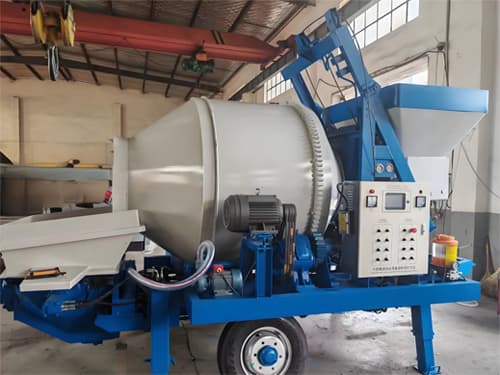

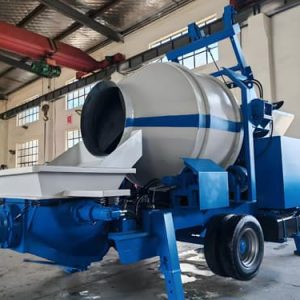

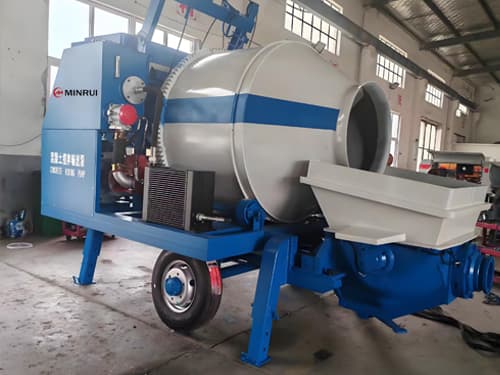

CMP40 Concrete Mixer Pump

40m3/h Concrete Mixer Pump with CE

Replacing labor with mechanization has become the contractor’s choice. A small forklift and concrete mixer with pump can replace the workload of five or six people, and the working efficiency has also increased several times. Use a forklift to send sand, stones, cement and other materials to concrete mixer with pump, and use the remote control to operate concrete mixer with pump hopper. Basically liberated the labor force.
In addition, concrete mixer with pump has the characteristics of small size, convenient transportation and low energy consumption, which is very suitable for the use of small civil construction in rural areas.

Diesel Electric Concrete mixer Pump Features:
1. All-in-one design makes the equipment take up less space and move easily and flexibly.
2. It integrates agitation and pumping into one, which makes it more convenient for users to carry out high-efficiency construction.
3. Configured with high performance and stability, fully automated operation, durable and easy maintenance, long life.
4. During construction, it will not affect the steel structure of the floor, and the quality of the poured floor is better.
5. Applicable to various civil construction houses, highways, farmland water conservancy and other engineering constructions.

Model CMP40
Max. Concrete Pump Capacity 40m3/h
Concrete Pump Pressure 10mpa
Pump Cylinder Ф200x1000mm
Oil Cylinder Φ100x1000mm
Concrete Outlet Diameter 150mm
Hopper / Loading Height 600L / 1070mm
Max. Aggregate Size 50/40mm
Pump Distance Vertically / Level 100/400m
Pump Power 95kw
Rated Speed 2000rpm
Oil Tank 200L
Mixer Charging Capacity 800L
Mixer Discharging Capacity 500L
Hydraulic Oil Circuit Type Full Hydraulic Control Reversing Open Circuit
Form Distribution Valve S Pipe Valve
Dimension 4800x2300x2600mm
Weight 6300kg
Capacity

30m3/h

Pumping Power

95kw

Horizontal - Pumping Distance

400m

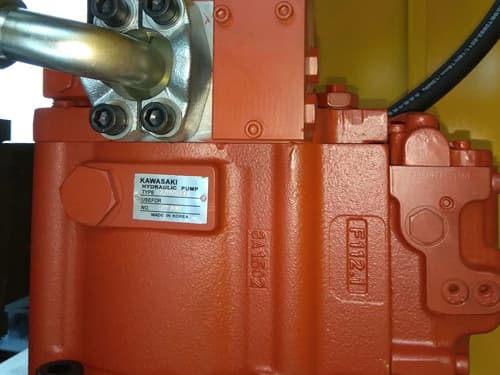

Hydraulic Pump

Kawasaki

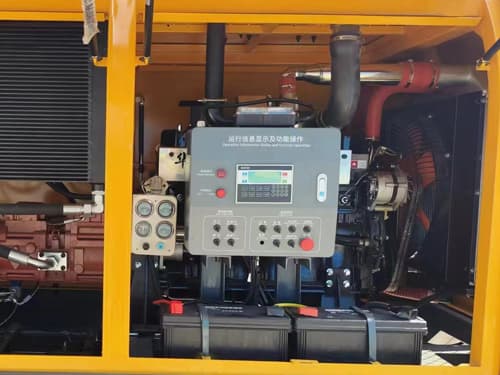

PLC

Omron | Siemens

Pumping Pressure

32mpa

Remote Control

Include

Vertical - Pumping Distance

100m
