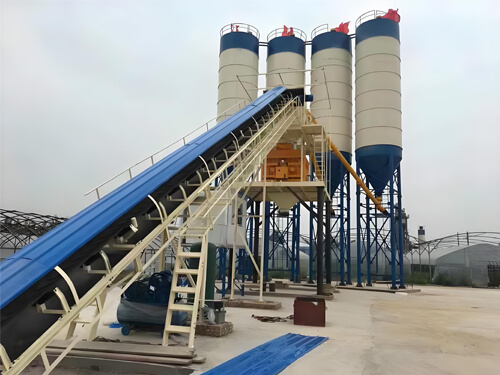

HZS180 Concrete Batching Plant

Description of Concrete Batching Plant:

HZS180 concrete mixing station is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy, electric power, railroad, road, tunnel, arch of bridge, harbor-wharf and the national defense-project and so on.
HZS180 Concrete mixer plant can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete.
The plant has various operational modes: fully automatic, semi-automatic and manual.

Features of HZS180 concrete mixing plant:

1.HZS180 concrete batching plant theory capacity: 180m³/h;
2. The Mixing System: the mixer is JS3000 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;
3. 3.8-4.1m discharging height: adjustable hydraulic discharging door or pneumatic discharging cylinder, standard type and exclusive extra-heavy type for optional;
4. Batching System: PLD4800 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 2-4 types as for select;
5. Feeding System: hopper feeder or belt conveyor, anti-block patents technology ensures forever non-block;
6. Weighing system: the system is with buffering device, auto compensation function and very high weighing accuracy;
7. Screw convey: diameter ø219-325mm, motor reducer power 15-22kw;
8. Cement silo: 50ton – 2000ton, bolted type for shipping conveniently;
9. Siemens Control system: PC+PLC control system ensures high reliability, simple/standard for optional;
10. All motors, speed reducers, sensors are famous brand;
11. Modular design, space-Saving integrated design, easy installation and disassembled;
