JS1000 1000L 1m3 Concrete Mixer

Capacity: 50m3/h, 60m3/h
Model: JS1000
Charging Volume: 1600L
Discharging Volume: 1000L
Mixing Power: 2x18.5kw, 2x22kw
Lubrication System: Automatic Oil Pump
Water Pump: 2.2kw, 3kw
Mixing Blades: High Manganese Alloy
Control System: Electrical Control Box
Certificate: ISO | SGS | CE

Specification

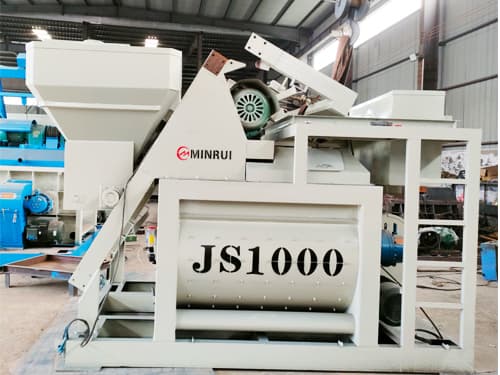

JS1000 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS1000 mixer can be used alone a separated concrete mixer or used as the mixing machine of 50/60m3/h concrete batching plant.

1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;
4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high molybdenum scale boards and stirring pieces;
5. Discharging types: Pneumaitc / Hydraulic / Manual, adjustable hydraulic discharging door;

Model JS1000
Discharging capacity 1000L
Charging capacity 1600L
Productivity 50/60M3
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade Speed 25.5r/min
Quantity 2×8
Mixing motor Model Y225S-4
Power 2×18.5 / 2x22KW
Lifting motor Model YZE160L-4
Power 15KW
Pump motor Model KQW65-100
Power 2.2 / 3 KW
Dimension(L*W*H) 4640x2250x2250mm
Total Weight 9870kg
