JS1000 Concrete Mixer 1m3

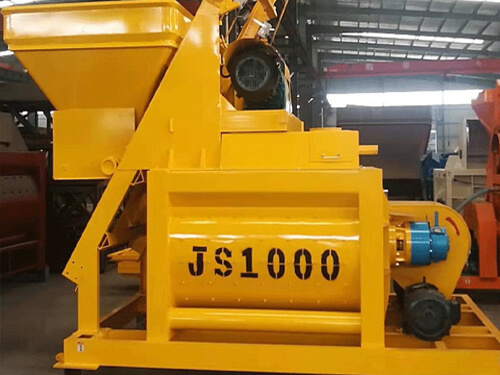

JS1000 1m3 Concrete Mixer

Model: JS1000
Capacity: 50m3/h, 60m3/h
Charging Volume: 1600L
Discharging Volume: 1000L
Mixing Power: 2x18.5kw, 2x22kw
Lifting Motor: 15kw
Water Pump Motor: 3kw

JS1000 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on. JS1000 1m3 mixer can be used alone a separated concrete mixer or used as the mixing machine of HZS50 HZS60 concrete batching plant.

Advantage of JS1000 Concrete Mixer:

1. Miniature horizontal twin shaft forced type concrete mixer;

2. short mixing time, excellent homogeneity and reliable operation;

3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;

4. alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high-molybdenum scale boards and stirring pieces;

5. Discharging types: Hydraulic/Manual, adjustable hydraulic discharging door;

Model JS1000
Discharging capacity 1000L
Charging capacity 1600L
Productivity 50M3
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade Speed 25.5r/min
Quantity 2*8
Mixing motor Model Y225S-4
Power 37KW
Lifting motor Model YZE160L-4
Power 11KW
Pump motor Model KQW65-100
Power 3KW
Dimension(L*W*H) 4640*2250*2250mm
Total Weight 9880kg
