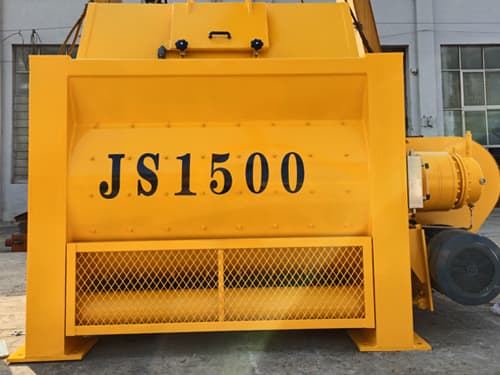

JS1500 1500L 1.5m3 Concrete Mixer
JS1500 1.5m3 Twin Shaft Concrete Mixer
JS1500 1500L 1.5m3 Concrete Mixer
Specification
Description
JS1500 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS1500 mixer can be used alone a separated concrete mixer or used as the mixing machine of 75/90m3/h concrete batching plant.
Features
1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;
4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high molybdenum scale boards and stirring pieces;
5. Discharging types: Pneumaitc / Hydraulic / Manual, adjustable hydraulic discharging door;
Technical Parameter
| Model | JS1500 | |
| Discharging capacity | 1500L | |
| Charging capacity | 2400L | |
| Productivity | 75/90M3 | |
| Max aggregate size | 60/80mm | |
| Working circle | 60s | |
| Discharge height | 3.8m | |
| Mixing blade | Speed | 23r/min |
| Quantity | 2×9 2×8 | |
| Mixing motor | Model | Y225M-4 |
| Power | 2x30KW | |
| Lifting motor | Model | YZE180M-4 |
| Power | 18.5KW | |
| Pump motor | Model | KQW65-100 |
| Power | 3KW | |
| Dimension(L*W*H) | 5058x2250x2440mm | |
| Total Weight | 10960kg | |
