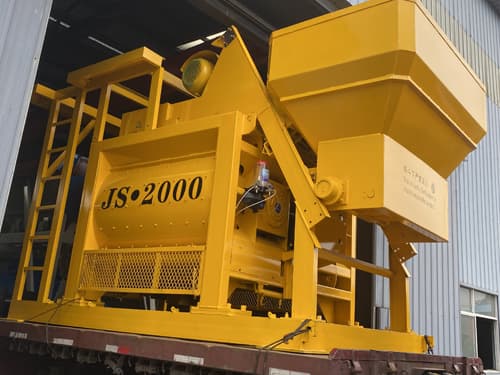

JS2000 2000L 2m3 Concrete Mixer

Capacity: 120m3/h
Model: JS2000
Charging Volume: 3200L
Discharging Volume: 2000L
Mixing Power: 2x37kw
Lubrication System: Automatic Oil Pump
Water Pump: 3kw
Mixing Blades: High Manganese Alloy
Control System: Full Automatic (Siemens)
Certificate: ISO | SGS | CE

Specification

JS2000 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS52000 mixer can be used alone a separated concrete mixer or used as the mixing machine of 120/100m3/h concrete batching plant.

1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;
4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high molybdenum scale boards and stirring pieces;
5. Discharging types: Pneumaitc / Hydraulic / Manual, adjustable hydraulic discharging door;

Model JS2000
Discharging capacity 2000L
Charging capacity 3200L
Productivity 120M3
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade Speed 23r/min
Quantity 2×8/9
Mixing motor Model Y225M-4
Power 2x37KW
Dimension(L*W*H) 3810x2480x1710 mm
Total Weight 9200kg
