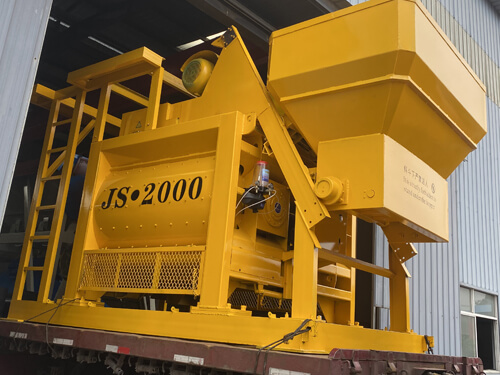

JS2000 Concrete Mixer 2m3

JS2000 2m3  Concrete Mixer

Model: JS2000
Capacity: 120m3/h
Charging Volume: 3200L
Discharging Volume: 2000L
Mixing Power: 2x37kw
Lifting Motor: 18.5kw
Water Pump Motor: 3kw

JS2000 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.JS2000 mixer can be used alone a separated concrete mixer or used as the mixing machine of HZS120 concrete batching plant.

1. Miniature horizontal twin shaft forced type concrete mixer;

2. short mixing time, excellent homogeneity and reliable operation;

3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;

4. alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high-molybdenum scale boards and stirring pieces;

5. Discharging types: Hydraulic/Manual, adjustable hydraulic discharging door;

Model JS2000
Discharging capacity 2000L
Charging capacity 3200L
Productivity 120M3
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade Speed 23r/min
Quantity 2*8
Mixing motor Model Y225M-4
Power 2*37KW
Dimension(L*W*H) 3810*2480*1710 mm
Total Weight 9200kg
