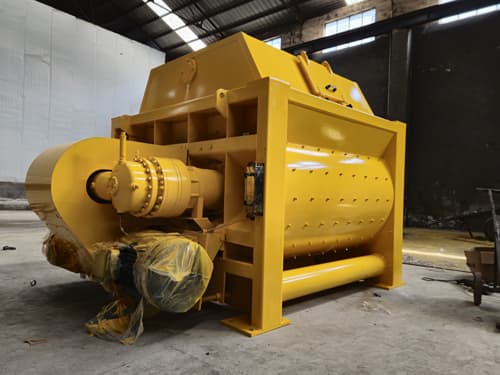

JS3000 3000L 3m3 Concrete Mixer

Capacity: 180m3/h
Model: JS3000
Charging Volume: 4800L
Discharging Volume: 3000L
Mixing Power: 2x45kw, 2x55kw
Lubrication System: Automatic Oil Pump
Water Pump: 3kw
Mixing Blades: High Manganese Alloy
Control System: Full Automatic (Siemens)
Certificate: ISO | SGS | CE

Specification

JS3000 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS3000 mixer can be used alone a separated concrete mixer or used as the mixing machine of 150/180m3/h concrete batching plant.

1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;
4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high molybdenum scale boards and stirring pieces;
5. Discharging types: Pneumaitc / Hydraulic / Manual, adjustable hydraulic discharging door;

Model JS3000
Discharging capacity 3000L
Charging capacity 4800L
Productivity 180M3
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade Speed 21r/min
Quantity 2×10
Mixing motor Model Y280M-6
Power 2x45kw, 2x55kw
Dimension(L*W*H) 4220x2620x1910 mm
Total Weight 11450kg
