JS3000 Concrete Mixer

JS3000 Concrete Mixer

3000L Twin Shaft Horizontal Concrete Mixer with CE

Capacity: 180m3/h
Control System: Automatic | Manual Type
Charging Volume: 4800L
Discharging Volume: 3000L
Mixing Power: 2x55kw
Lifting Power: Belt Conveyor
Water Pump: 5kw
Tile | Mixing Blade: High Wear-resistant Alloy

Product Introduction

Description of JS3000 Concrete Mixer:
JS3000 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS3000 mixer can be used alone a separated concrete mixer or used as the mixing machine of HZS180 concrete batching plant.

Advantage of JS3000 Concrete Mixer:
1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;

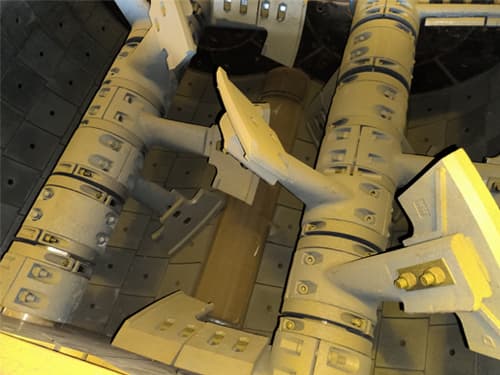

4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high-molybdenum scale boards and stirring pieces;
5. Discharging types: hydraulic discharging door;

Model JS3000
Discharging capacity 3000L
Charging capacity 4800L
Productivity 180m3/h
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade Speed 21r/min
Quantity 2×10
Mixing motor Model Y280M-6
Power 2x55KW
Dimension(LxWxH) 4220x2620x1910 mm
Total Weight 11450kg
