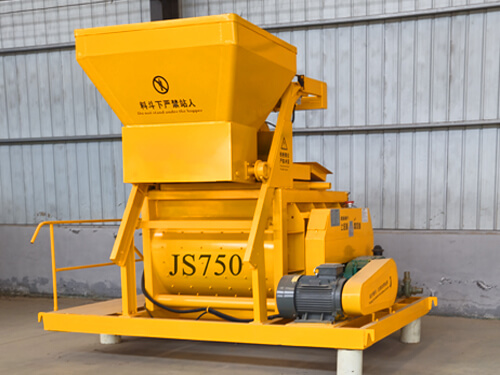

JS750 Concrete Mixer

JS750 Concrete Mixer

750L Twin Shaft Horizontal Concrete Mixer with CE

Capacity: 35m3/h
Control System: Automatic | Manual Type
Charging Volume: 1200L
Discharging Volume: 750L
Mixing Power: 30kw
Lifting Power: 7.5kw
Water Pump: 1.1kw
Tile | Mixing Blade: High Wear-resistant Alloy

Product Introduction

Description of JS750 Concrete Mixer:
JS 750 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS750 mixer can be used alone a separated concrete mixer or used as the mixing machine of HZS35 concrete batching plant.

Advantage of JS750 Concrete Mixer:
1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;
4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high-molybdenum scale boards and stirring pieces;
5. Discharging types: pneumatic cylinder/manual, adjustable hydraulic discharging door;

Model JS750
Discharging capacity 750L
Charging capacity 1200L
Productivity 35m3/h
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade speed 30.5r/min
quantity 2×8
Mixing motor Model Y200L-4
Power 30KW
Lifting motor Model YZE132M-4
Power 7.5KW
Pump motor Model 65DWB35-5
Power 1.1KW
Dimension(LxWxH) 4550x2250x2450mm
Total Weight 6150kg
