JS750 750L 0.75m3 Concrete Mixer

Capacity: 35m3/h
Model: JS750
Charging Volume: 1200L
Discharging Volume: 750L
Mixing Power: 30kw
Lubrication System: Automatic Oil Pump
Water Pump: 1.1kw
Mixing Blades: High Manganese Alloy
Control System: Electrical Control Box
Certificate: ISO | SGS | CE

Specification

JS750 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
JS750 mixer can be used alone a separated concrete mixer or used as the mixing machine of 35m3/h concrete batching plant.

1. Miniature horizontal twin shaft forced type concrete mixer;
2. Short mixing time, excellent homogeneity and reliable operation;
3. Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;
4. Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high molybdenum scale boards and stirring pieces;
5. Discharging types: Pneumaitc / Hydraulic / Manual, adjustable hydraulic discharging door;

Model JS750
Discharging capacity 750L
Charging capacity 1200L
Productivity 35M3
Max aggregate size 60/80mm
Working circle 60s
Discharge height 3.8m
Mixing blade speed 30.5r/min
quantity 2×7
Mixing motor Model Y200L-4
Power 30KW
Lifting motor Model YZE132M-4
Power 7.5KW
Pump motor Model 65DWB35-5
Power 1.1KW
Dimension(L*W*H) 4550x2250x2450mm
Total Weight 6150kg

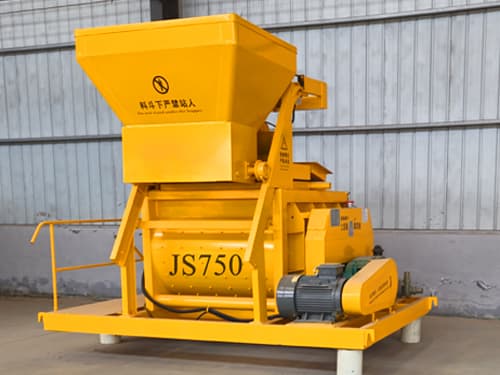

JS750 Concrete mixer
Mixer Mixing Blade
Mixing Blades
