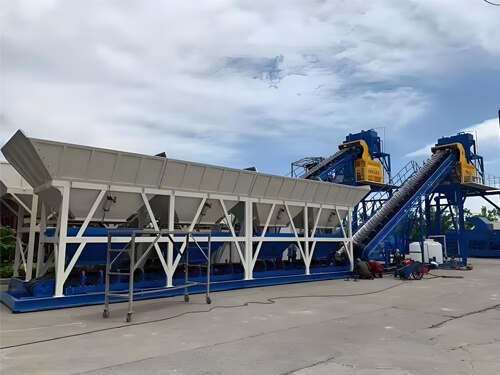

NHZS120 Free Installation Concrete Batching Plant

The NHZS120 type concrete batching plant without foundation (free installation) is suitable for commercial concrete and concrete construction in various construction projects, including water conservancy, power, railway, highway, tunnel, bridge arch, port and wharf, as well as national defense projects.
Since there is no need for a foundation, this mixing station can be transported to other work sites by a tractor-trailer at any time.

1. NHZS120 no foundation concrete batching plant theory Capacity: 120m³/h;

2. The Mixing System: The mixer is JS2000 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;

3. 4.1m discharging height: adjustable hydraulic discharging door, Standard type and Exclusive Extra-Heavy Type for optional;

4. Batching System: PLD3200 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 3-4 types as for select;

5. Feeding System: Hopper feeder, anti-block patents technology ensures forever non-block;

6. Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy;

7. Screw convey: Diameter ø273/325mm, Twin-Reducer power 15kw;

8. Cement silo: 50ton – 200ton, Split for shipping conveniently;

9. Control system: PC+PLC control system ensures high reliability, Simple/Standard for optional;

10. All Motors, Speed Reducers, Sensors are of China Famous Brand;

11. Modular Design, Space-Saving Integrated Design, Easy Installation and Removal;
