NHZS75 Foundation Free Concrete Batching Plant
NHZS75 Foundation Free Concrete Batching Plant
75m3/h NHZS75 Foundation Free Concrete Batching Plant With CE
Capacity: 75m3/h
Control System: Siemens Automatic Computer Control
Concrete Mixer: JS1500
Cement Silo: 50t | 100t | 150t | 200t | 300t | 500t
Discharging Height: 1.5m | 3.8m | 4.1m
Loading Mode: Inclined Belt Conveyor, Skip Hoist

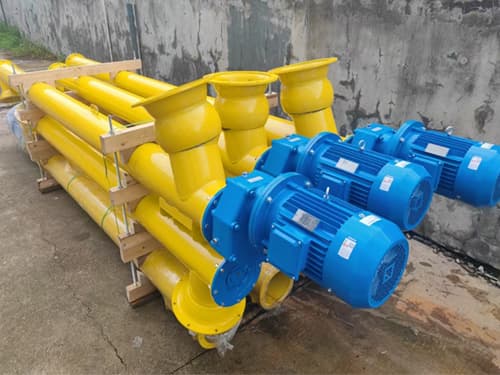

Cement Screw Conveyor: LSY219 | 273 | 325
Cement Silo: 50t | 100t | 150t | 200t | 300t | 500t
Description
NHZS75 Foundation Free Concrete Plant (free installation) is suitable for commercial concrete and concrete construction in various construction projects, including water conservancy, power, railway, highway, tunnel, bridge arch, port and wharf, as well as national defense projects.
Since there is no need for a foundation, this mixing station can be transported to other work sites by a tractor-trailer at any time.
| Model | NHZS75 |
| Capacity | 75m3/h |
| Mixer | JS1500 |

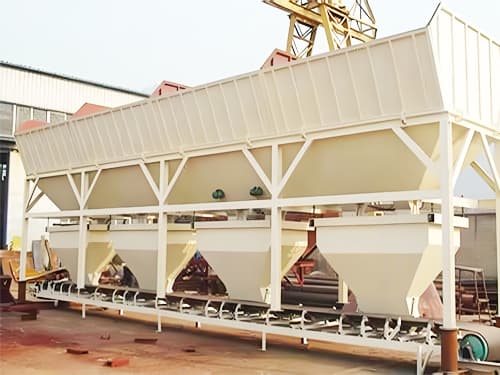

| Batching Machine | 4x9m3 |
| Cement Scale | 3x1500Kg±2% |
| Fly Ash Scale | 3x1000Kg±1% |
| Water Scale | 3x500Kg±1% |
| Additive Scale | 1x100Kg±1% |
| Aggregate Diameter | ≤80mm |
| Control System | Siemens Automatic Control |
| Foundation | With Chassis, Foundation-free |
Factory Process
Successful Case
