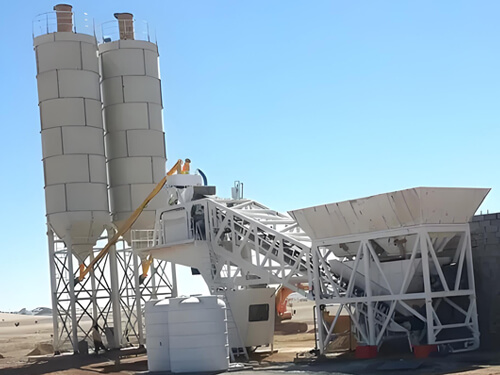

YHZS35 Mobile Concrete Mixer Plant

YHZS35 mobile concrete mixing plant is an innovation movable by trailer concrete mixing plant designed to fulfill a variety of applications.

YHZS35 mobile concrete plant is an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.

1. YHZS35 concrete mixer plant theory Capacity: 35m³/h;

2. The Mixing System: The mixer is JS750 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;

3. 3.8m discharging height: adjustable hydraulic discharging door, Standard type and Exclusive Extra-Heavy Type for optional;

4.Batching System: PLD1200 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 2-4 types as for select;

5. Feeding System: Hopper feeder, anti-block patents technology ensures forever non-block;

6. Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy;

7. Screw convey: Diameter ø219mm, Twin-Reducer power 7.5kw;

8. Cement silo: 50ton – 200ton, Split for shipping conveniently;

9. Control system: PC+PLC control system ensures high reliability, Simple/Standard for optional;

10. All Motors, Speed Reducers, Sensors are of China Famous Brand;

11. Modular Design, Space-Saving Integrated Design, Easy Installation and Removal;
