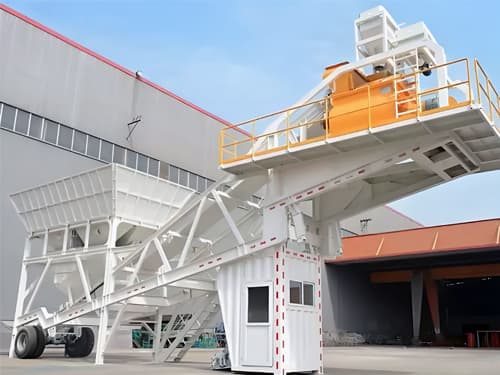

YHZS120 Mobile Concrete Batching Plant

YHZS120 Mobile Concrete Batching Plant

120m3/h Mobile Concrete Batching Plant CE

Capacity: 120m3/h
Control System: Siemens Automatic Control
Conctete Mixer: JS2000
Loading Model: Incliended Belt Conveyor
Aggregate Batching Machine: PLD3200
Discharging Height: 3.8m | 4.1m
Cement Silo: 50t | 100t | 150t | 200t | 300t | 500t
Cement Screw Conveyor: LSY219 | 273 | 325

Product Introduction

Descriptions of Mobile Concrete Mixing Plant:
YHZS120 mobile concrete mixing plant is an innovation movable by trailer concrete mixing plant designed to fulfill a variety of applications.
YHZS120 mobile concrete plant is an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.

Features of YHZS120 Concrete Mixing Plant:
1. YHZS120 concrete mixer plant theory capacity: 120m³/h;
2. The mixing system: the mixer is JS2000 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;
3. 3.8m discharging height: adjustable hydraulic discharging door, standard pneumatic cylinder type and exclusive extra-heavy type for optional;
4. Batching system: PLD3200 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 4 types as for select;
5. Feeding system: belt conveyor;
6. Weighing system: the system is with buffering device, auto compensation function and very high weighing accuracy;
7. Screw convey: diameter ø219/273/325mm, Twin-Reducer power 11-22kw;
8. Cement silo: 100ton – 500ton, split for shipping conveniently;
9. Control system: PC+PLC control system ensures high reliability, simple/standard for optional;
10. All motors, speed reducers, sensors are of famous brand;
11. Modular design, space-saving integrated design, easy installation and removal;

Model YHZS120
Capacity 120m3/h
Mixer JS2000
Batching Machine 4x15m3
Cement Scale 4x1500Kg±2%
Fly Ash Scale 3x1000Kg±1%
Water Scale 3x500Kg±1%
Additive Scale 1x100Kg±1%
Aggregate Diameter ≤80mm
Control System Siemens Automatic Control
Max Pulling Speed ≤40Km/h
