YHZS35 Mobile Concrete Batching Plant

Descriptions of Mobile Concrete Mixing Plant:
YHZS35 mobile concrete mixing plant is an innovation movable by trailer concrete mixing plant designed to fulfill a variety of applications.
YHZS35 mobile concrete plant is an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.

Features of YHZS35 Concrete Mixing Plant:
1. YHZS35 concrete mixer plant theory capacity: 35m³/h;
2. The mixing system: the mixer is JS750 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;
3. 3.8m discharging height: adjustable hydraulic discharging door, standard pneumatic cylinder type and exclusive extra-heavy type for optional;

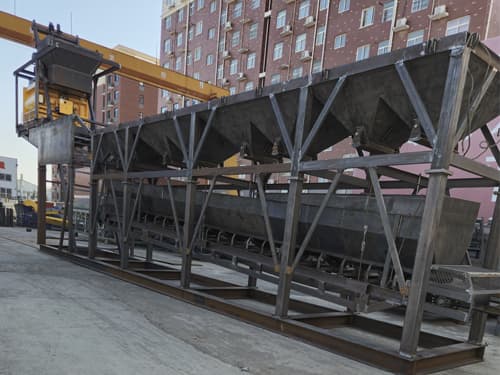

4.Batching system: PLD1200 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 2-4 types as for select;
5. Feeding system: belt conveyor;
6. Weighing system: the system is with buffering device, auto compensation function and very high weighing accuracy;
7. Screw convey: diameter ø219mm, motor reducer power 11kw;

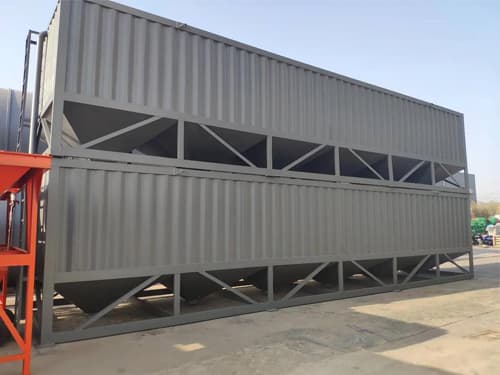

8. Cement silo: 50ton – 200ton, split for shipping conveniently;
9. Control system: PC+PLC control system ensures high reliability, simple/standard for optional;
10. All motors, speed reducers, sensors are of famous brand;
11. Modular design, space-saving integrated design, easy installation and removal;
