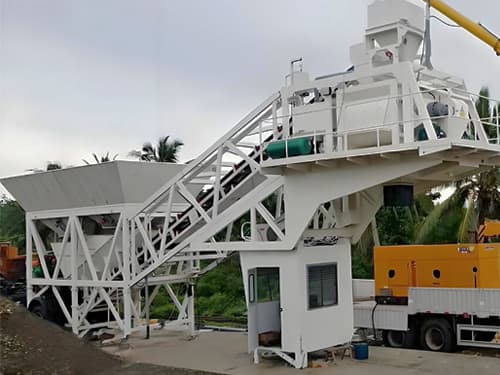

YHZS60 Mobile Concrete Batching Plant

YHZS60 mobile concrete mixing plant is an innovation movable by trailer, mobile concrete batching plant designed to fulfill a variety of applications.
YHZS60 mobile concrete plant is an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.

1. YHZS60 concrete mixer plant theory Capacity: 60m³/h;
2. The Mixing System: The mixer is JS1000 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;
3. 3.8m discharging height: adjustable hydraulic discharging door, Standard type and Exclusive Extra-Heavy Type for optional;
4. Batching System: PLD1600 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 2 / 4 types as for select;
5. Feeding System: Hopper feeder, anti-block patents technology ensures forever non-block;
6. Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy;
7. Screw convey: Diameter ø219/273mm, Twin-Reducer power 15kw;
8. Mobile Horizontal Cement silo: 50ton – 2000ton, complete set for shipping, conveniently installation;
9. Control system: PC+PLC control system ensures high reliability, Simple/Standard for optional;
10. All Motors, Speed Reducers, Sensors are of China Famous Brand;
11. Modular Design, Space-Saving Integrated Design, Easy Installation and Removal;
