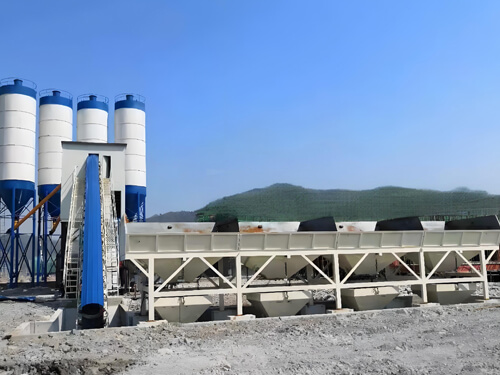

HZS120 Concrete Batching Plant

HZS120 concrete mixing plant is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy, electric power, railroad, road, tunnel, arch of bridge, harbor-wharf and the national defense-project and so on. HZS120 Concrete batching plant can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes: fully automatic, semi-automatic and manual.

1.HZS120 concrete mixer plant theory Capacity: 120m³/h;

2. The Mixing System: The mixer is JS2000 twin shafts mixer with arms screwed ensure shorter mixing time but higher evenness;

3. 4.1m discharging height: adjustable hydraulic discharging door, Standard type and Exclusive Extra-Heavy Type for optional;

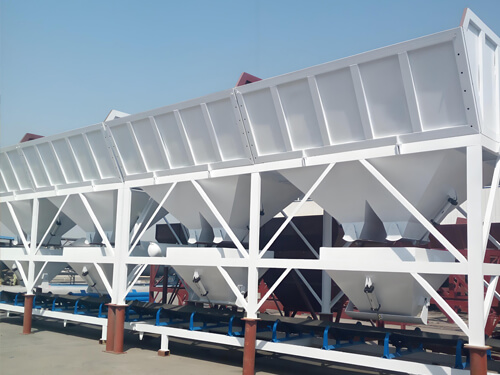

4.Batching System: PLD3200 Individual batching machine adopted electric weighing system can be correction and measure automatically. The batching aggregates have 3-4 types as for select;

5. Feeding System: Hopper feeder, anti-block patents technology ensures forever non-block;

6. Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy;

7. Screw convey: Diameter ø273/325mm, Twin-Reducer power 15kw;

8. Cement silo: 50ton – 200ton, Split for shipping conveniently;

9. Control system: PC+PLC control system ensures high reliability, Simple/Standard for optional;

10. All Motors, Speed Reducers, Sensors are of China Famous Brand;

11. Modular Design, Space-Saving Integrated Design, Easy Installation and Removal;
