NHZS25 Foundation Free Concrete Batching Plant

NHZS25 Foundation Free Concrete Batching Plant

25m3/h Foundation Free Concrete Batching Plant CE

Capacity: 25m3/h
Control System: Siemens Automatic Control
Conctete Mixer: JS500
Loading Model: Incliended Belt Conveyor, Skip Hoist

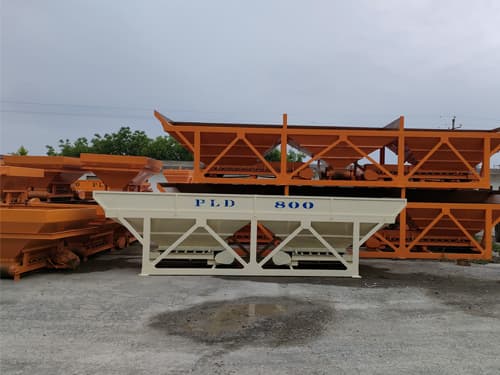

Aggregate Batching Machine: PLD800
Discharging Height: 1.5m | 3.8m | 4.1m
Cement Silo: 50t | 100t | 150t | 200t | 300t | 500t
Cement Screw Conveyor: LSY219 | 273 | 325

Product Introduction

The NHZS25 type concrete plant without foundation (free installation) is suitable for commercial concrete and concrete construction in various construction projects, including water conservancy, power, railway, highway, tunnel, bridge arch, port and wharf, as well as national defense projects.

Since there is no need for a foundation, this mixing station can be transported to other work sites by a tractor-trailer at any time.

Model NHZS25
Capacity 25m3/h
Mixer JS500
Batching Machine PLD800
Cement Scale 3x500Kg±2%
Fly Ash Scale 3x500Kg±1%
Water Scale 3x300Kg±1%
Additive Scale 1x50Kg±1%
Aggregate Diameter ≤80mm
Control System Siemens Automatic Control
Foundation Chassis HW200-250 Steel
